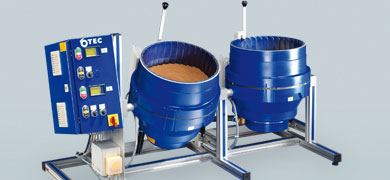

CF-T Series

The machines of the CF-T series are high-performance disc finishing units in benchtop design. They all offer the design benefits of the globally successful CF series. The CF-T series offers exceptionally good value and is universal in its applications. It is ideal for deburring and grinding industrial workpieces and also for finishing jewelry.

The unique, patented gap system between the disc and the process container enables the gap to be set with an accuracy of 0.05 mm when using the CF machine for dry processing. This means that very thin workpieces can be processed and that the very best results can be achieved by using extremely fine abrasive media.

Standard equipment

High-quality gap system with ceramic rings for using extra-fine polishing granulate
Speed control via frequency inverter
Digital readout of preset time, elapsed time, speed and faults

Type	Container volume [l]	Internal diameter of container [mm]	Length x Depth x Height [mm]	Weight [kg]	Power requirement [kVA/V]
CF 5 T	5	190	525 x 475 x 630	30	0.4/230
CF 2 x 5 T	2 x 5	190	780 x 475 x 630	63	0.8/230
CF 9 T	9	257	700 x 560 x 850	65	0.9/230
CF 2 x 9 T	2 x 9	257	1150 x 560 x 850	116	1.8/230
CF 18 T	18	333	780 x 580 x 850	80	0.9/230
CF 2 x 18 T	2 x 18	333	1200 x 580 x 850	140	1.8/230
