SF stream finishing machine

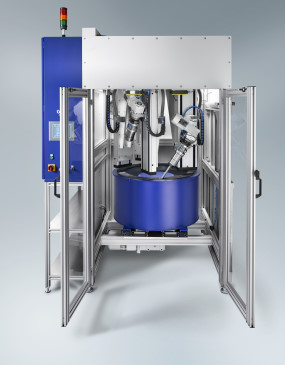

- SF-5 stream finishing machine
The SF stream finishing machine (also referred to as an immersion polishing unit) is a completely new concept which features short processing times, easy automation and excellent reliability as well as providing a first-class mirror finish even inside the flutes. It is also called spindle finishing machine.
Highlights:
- Easy automation
- Shorter processing times for edge rounding and polishing
- Gives a perfect polish, even inside the chip flute
- Workpieces can be changed whilst the process is running
- Can process workpieces of up to 400 mm in length and up to 20 kg in weight (including holder)
- Number and design of workpiece holders can be customised to suit requirements
Holders:
- Workpieces clamped by means of a 3-jaw gripper (Chucking capacity 12 mm)
- Three-jaw chuck
- Collet chuck
Typical applications
Can easily be linked to a robot cell to provide fully automatic edge rounding and mirror finish polishing of carbide tools
Watch the video: SF-3 machine and SF-1 machine
| Type
|
Amount of
workpiece holder | Internal
diameter of drum [mm] |
Length x Depth x Height
[mm] |
Weight
[kg] |
Power
requirement [kVA/V] |
|---|---|---|---|---|---|
| SF-1-68 | 1 | 680 | 1620 x 1210 x 2100 | 600 | 4,2/400 |
| SF-1-105 | 1 | 1050 | 1870 x 1520 x 2600 | 1100 | 11/400 |
| SF-2-68 | 2 | 680 | 1620 x 1210 x 2100 | 730 | 5,5/400 |
| SF-2-105 | 2 | 1050 | 1870 x 1520 x 2600 | 1200 | 11,2/400 |
| SF-3-105 | 3 | 1050 | 1870 x 1520 x 2600 | 1300 | 11,4/400 |
| SF-4-105 | 4 | 1050 | 1870 x 1520 x 2600 | 1400 | 11,6/400 |
| SF-5-105 | 5 | 1050 | 1870 x 1520 x 2600 | 1500 | 11,8/400 |
