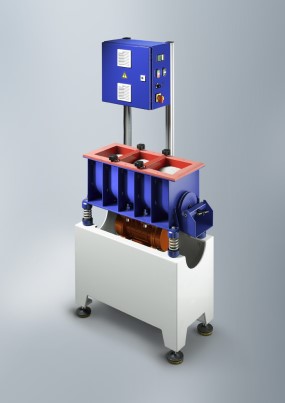

HV 20 tub vibrator

The HV 20 tub vibrator is a new addition to the OTEC range of mass finishing machines. OTEC has previously specialised in disc finishing and drag finishing machines and achieved a worldwide reputation for innovative products in these areas. By introducing the HV 20 tub vibrator, OTEC is now extending its product range still further and increasing the scope of options available for mass finishing, deburring, edge rounding and polishing. The highlights of the tub vibrator are as follows:

• 20g reverse acceleration for much shorter finishing times than comparable systems
• With soundproofing (can be operated under normal production conditions)
• Centrifugal force 1000 kg
• Especially easy to use
• Can be used to finish internal surfaces
• Continuous water flow
• Motor output 1.3 kW
• Speed control
• For dry and wet finishing
• Suitable for ball polishing

Typical applications for this tub vibrator include the finishing of bone nails, bone plates, drill inserts and dies. Thanks to its unique design, this machine provides very intensive finishing and therefore enables much shorter processing times to be achieved than with conventional tub vibrators.

Watch the video: HV 20
