OTEC Centrifuge WT-15-500-M

The newly developed OTEC Centrifuge WT-15-500-M enables a highly effective recirculation system that complements existing or newly installed mass finishing systems. By reusing treated process water multiple times, both compound and fresh water consumption can be significantly reduced. The high separation performance, driven by strong centrifugal force, results in dense sludge compaction with low residual volume, which in turn lowers disposal costs.

Applications

• Environmentally friendly recirculation system for process water treatment for the CF, DF, and SF series
• Flow rate of 1,000 l/h and sludge volume up to 10 kg

Highlights

• Lower operating costs through efficient water recirculation
  - Up to 80 % less compound consumption
  - Up to 98 % savings in fresh water
  - Sustainable reduction of mass finishing wastewater
• Abrasion from workpieces and media is removed from the process water, while unused compound stays in the process
• Ease of operation through automation of: tank emptying, supply of process water cleaner and fresh water

• No regulatory monitoring or documentation obligations for recirculation systems

Technical Features

• Process parameters
  - Water throughput of up to 1,000 l/h possible
  - Sludge basket for up to 10 kg of sludge weight
  - Process water tank clean/dirty tank available in 180, 250, 500, and 850 l volumes
  - Simultaneous operation of three mass finishing systems possible
• Operation
  - Intuitive and convenient operation via 7" touch display
  - Automation of tank emptying, supply of process water cleaner, and fresh water
• Equipment
  - Centrifuge with control cabinet and process water tank, pump unit consisting of dirty water and clean water pumps for up to three mass finishing systems
  - Sludge basket with ribbed container material for easier removal

• Optional equipment
  - Dosing pump for process water cleaner, drip tray, leak sensor, automatic tank emptying, automatic fresh water refill, cleaning spray gun, vibration monitor
  - Steel/aluminum or stainless steel centrifuge available

Process water before and after treatment

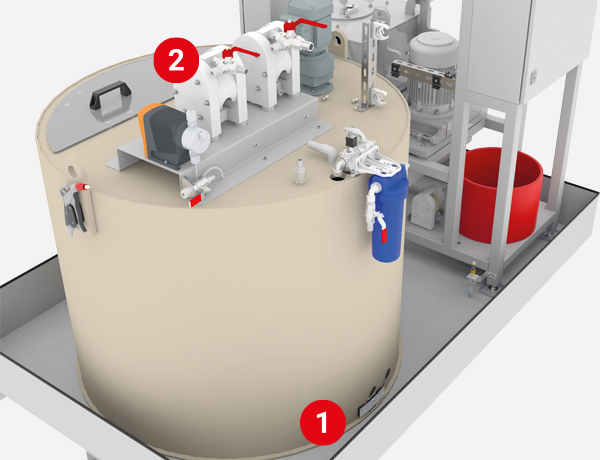

Convenient Operation

• Automation of:
  - Tank emptying via suction lances recessed into the tank floor (1)
  - Supply of process water cleaner and fresh water
• Emptying monitoring via level sensors (1)
• Control via touch panel
• Automatic pump shut-off

• Plug-in couplings (2) for simplified connection of wastewater hoses
